FF Part No. FF017768
Equivalent Part No. FF017768
Spec: 110 LWB - 3 Door
Detail: runs front to back of back body tub. 1960mm length x 1.5mm thick aluminium top-hat profile. rivets not included
FF Part No. FF017276
Equivalent Part No. LR028396
Spec: 7A000001 (approx 2007) onwards
Detail: 8 required per wing. integrated washer included. use with spire nut FF017275
FF Part No. FF005235
Equivalent Part No. AM605061
Spec: upto 6A999999 (approx 2006)
Detail: 8 required per wing. use with spire nut FF005236
FF Part No. FF005236
Equivalent Part No. AK616011
Spec: upto 6A999999 (approx 2006)
Detail: 8 required per wing. use with bolt FF005235
FF Part No. FF017275
Equivalent Part No. RYH500720
Spec: 7A000001 (approx 2007) onwards
Detail: 8 required per wing. use with bolt FF017276
FF Part No. FF017068
Equivalent Part No. AQU710040
Spec: Right Hand Side
Detail: mounts to bulkhead
FF Part No. FF017066
Equivalent Part No. LR033005
Spec: Left Hand Side
Detail: mounts to chassis
FF Part No. FF017067
Equivalent Part No. AQU710050
Spec: Left Hand Side
Detail: mounts to bulkhead
FF Part No. FF017065
Equivalent Part No. LR033004
Spec: Right Hand Side
Detail: mounts to chassis
FF Part No. FF016886
Equivalent Part No. AYP500170
Spec: Front Outer Wing Panel to Wing
Detail: 14 required per front outer wing. order with washers FF016883 and J-nuts FF004279.
FF Part No. FF016883
Equivalent Part No. 3900L
Spec: Front Outer Wing Panel to Wing
Detail: 14 required per front outer wing. order with screws FF016886 and J-nuts FF004279. also used in a variety of other applications
FF Part No. FF016878
Equivalent Part No. WA108056
Detail: used in a variety of applications for body fixings etc
FF Part No. FF016661
Equivalent Part No. AYF500020
Spec: 5/16th
Detail: used in a number of different places - sill brackets, truck cab, engine mountings, fuel tank etc.
FF Part No. FF016537
Equivalent Part No. DA4933
Spec: Non Air Con Models - MA939976 (approx 1994) to 6A999999 (approx 2006)
FF Part No. FF016536
Equivalent Part No. DA4932
Spec: Non Air Con Models - upto LA939975 (approx 1993)
Detail: equivalent to 2 x original LR part number 395185
FF Part No. FF015289
Equivalent Part No. 338550
FF Part No. FF014675
Equivalent Part No. FF014675
Spec: 90 SWB Models Only
Detail: ideal for chassis renewal. consists of A4-80 grade stainless steel fixings for bumper bolts, front wing to chassis dumb irons, bulkhead footwell to chassis, bulkhead to chassis outrigger, seat box to chassis, seat belt chassis, tubular outrigger to chassis, chassis bracket to front of rear body tub, rear cross member.
FF Part No. FF014674
Equivalent Part No. FF014674
Spec: 110 5 Door Station Wagon Models ONLY
Detail: ideal for chassis renewal. consists of A4-80 grade stainless steel fixings for bumper bolts, front wing to chassis dumb irons, bulkhead footwell to chassis, bulkhead to chassis outrigger, seat box to chassis, rear body mount outrigger to rear passenger kick panel, seat belt chassis to kick panel, centre cross member to chassis and body, rear cross member.
FF Part No. FF014650
Equivalent Part No. MTC6332KIT
Spec: Brackets With Stainless Steel Nuts and Bolts
Detail: consists of stainless steel mounting brackets for aircon front panel 4 x No8 x 16mm A2 Pz2 screws 2 x A4-70 No14 x 25mm Pz3 stainless steel screws 4 x M5 A4 flat washers 2 x M6 A4 flat washers 2 x M8 A4-80 x 20mm hex head bolts 2 x M8 A4 flat washers 4 x No6 plastic lock nuts 2 x No14 captive U nuts 2 x M8 A2/304 captive nuts NB - A4-80 is the equivalent of mild steel 8.8 high tensile bolts
FF Part No. FF014210
Equivalent Part No. FF014210
Spec: 90 Short Wheel Base
Detail: runs front to back of body tub 1210mm. aluminium. rivets not included

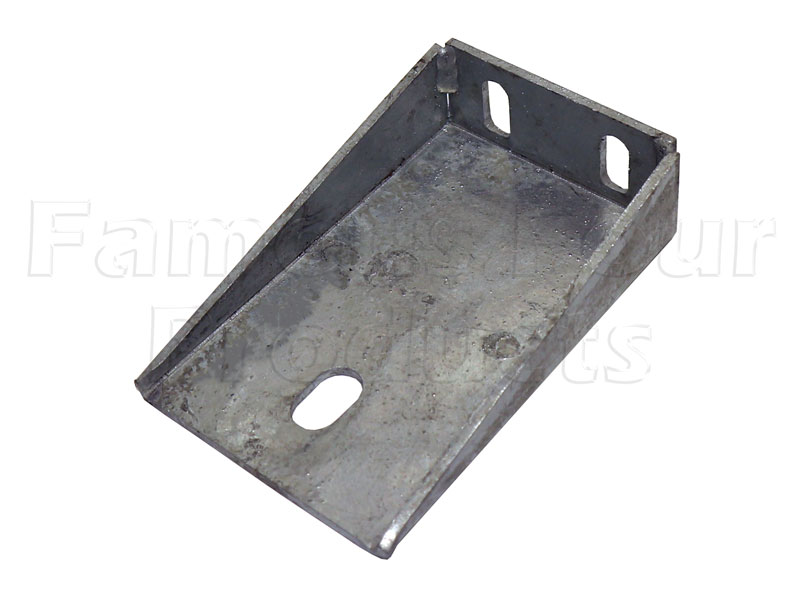

FF Part No. FF013669
Equivalent Part No. RRC6168
Spec: Centre - 110/130 Hi-Cap (HCPU) ONLY
Detail: supports the rear body tub from the chassis rear cross member
FF Part No. FF013333
Equivalent Part No. KVU101420
Spec: Left or Right Hand Side - 110/130 Hi-Cap (HCPU) ONLY
Detail: supports the rear body tub at the front - suitable for either side. 2 fitted per vehicle.
FF Part No. FF013306
Equivalent Part No. MTC3482
Spec: Left Hand Side - 110/130 Hi-Cap (HCPU) ONLY
Detail: supports the rear body tub at the front
FF Part No. FF013305
Equivalent Part No. MTC3481
Spec: Right Hand Side - 110/130 Hi-Cap (HCPU) ONLY
Detail: supports the rear body tub at the front
FF Part No. FF013304
Equivalent Part No. RRC6155
Spec: Left Hand Side - 110/130 Hi-Cap (HCPU) ONLY
Detail: supports the rear body tub from the chassis rear cross member

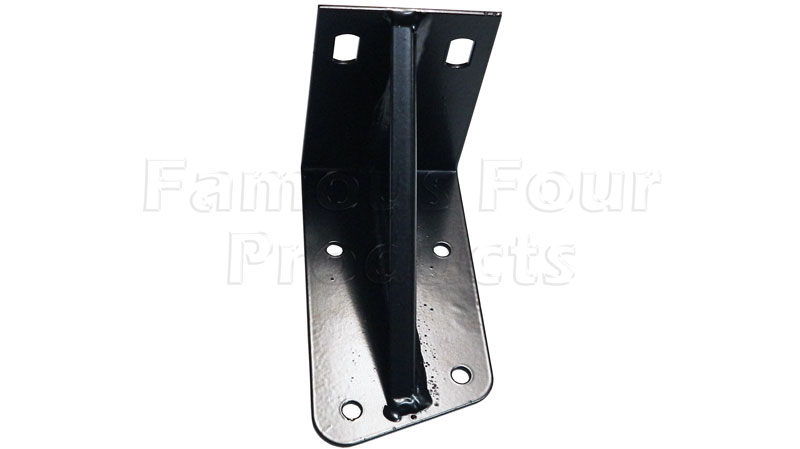

FF Part No. FF013303
Equivalent Part No. RRC6154
Spec: Right Hand Side - 110/130 Hi-Cap (HCPU) ONLY
Detail: supports the rear body tub from the chassis rear cross member
FF Part No. FF013935
Equivalent Part No. MRC8388
Spec: Outer
Detail: located on front of seatbox - 2 required per vehicle

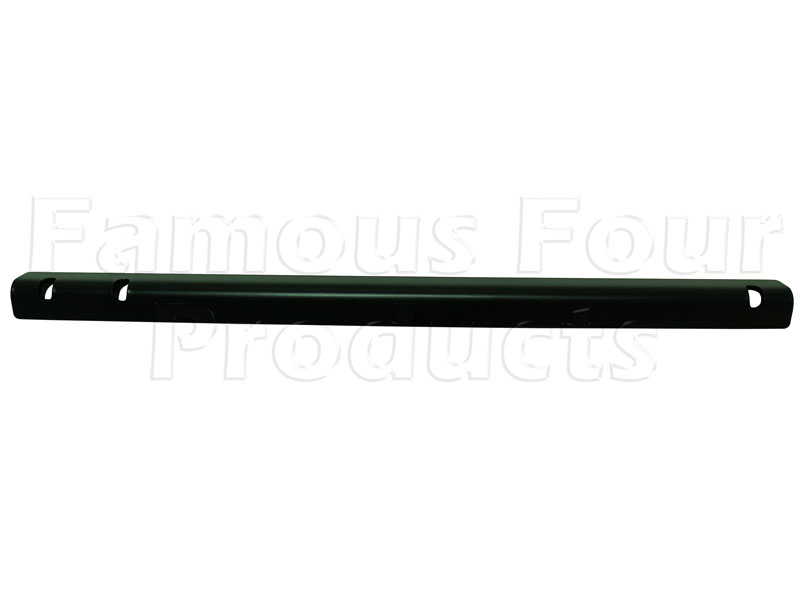

FF Part No. FF013197
Equivalent Part No. MUC7513
Spec: AA/BA270512 (approx 1986) to MA962814 (approx 1994)

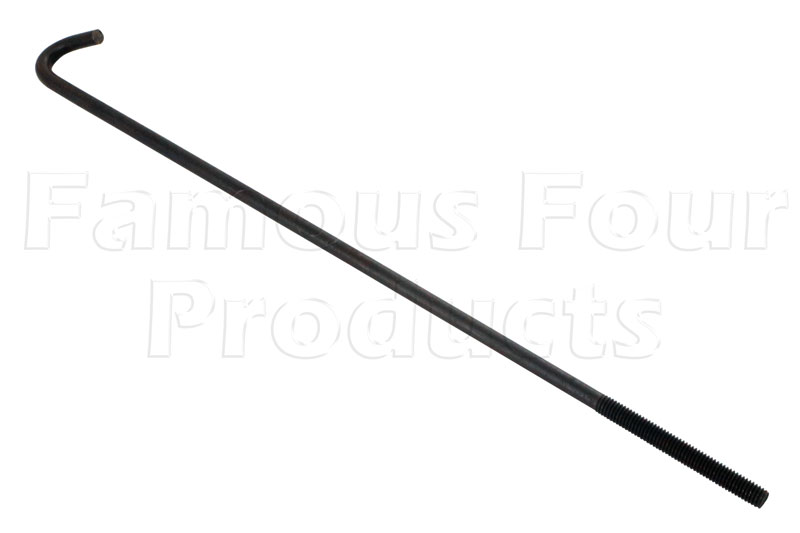

FF Part No. FF013198
Equivalent Part No. MUC7514
Spec: for Battery Clamp - AA/BA270512 (approx 1986) to HA455946 (approx 1990)
FF Part No. FF013194
Equivalent Part No. STC307
Spec: for Battery Clamp - HA455946 (approx 1990) to XA176424 (approx 1998)
FF Part No. FF013193
Equivalent Part No. YJJ100070
Spec: for Battery Clamp - Td5 Vehicles
FF Part No. FF013152
Equivalent Part No. FF013152
Spec: Stainless Steel Nuts and Bolts
Detail: consists of 9 x M6 x 20mm Hex Head Bolts 16 x M6 x 30mm Hex Head Bolts 50 x M6 A4 Flat Washers 25 x M6 Flanged Serrated Nuts
FF Part No. FF013142
Equivalent Part No. NRC5478G
Spec: 110/130 - 2 required per vehicle
Detail: supports the rear body tub from the chassis A-frame cross member

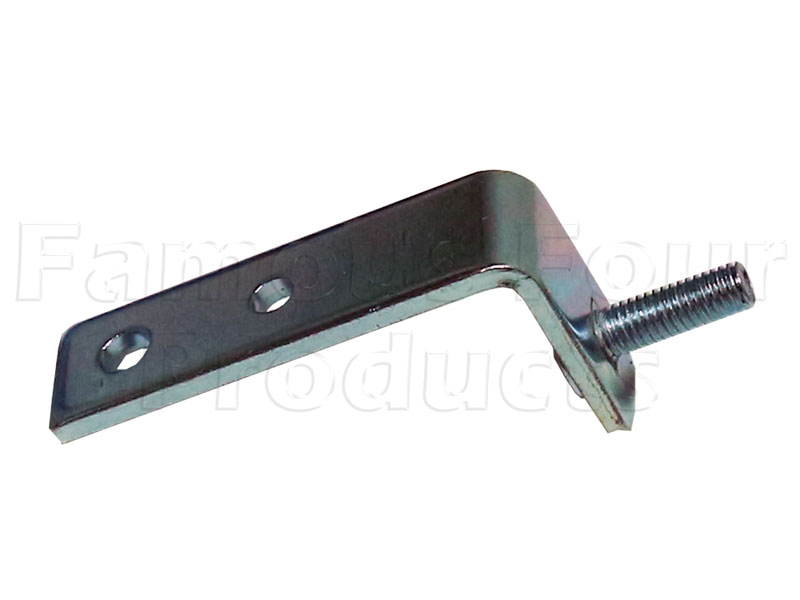

FF Part No. FF013032
Equivalent Part No. LR048390
Spec: Rear Corner Support
Detail: 2 required per hardtop - 1 for each corner
FF Part No. FF013027
Equivalent Part No. AYF500070
Detail: order with bolt FF011161. 4 required per hardtop - 1 for each corner
FF Part No. FF012554
Equivalent Part No. ANR6332
Spec: LA939892 to BA999999 (approx 1994 to 2010)
FF Part No. FF012461
Equivalent Part No. 336577
Spec: LWB 110 inch ONLY - upto 6A999999 (approx 2006)
Detail: 4 required per vehicle - fixing bolts not supplied
FF Part No. FF011161
Equivalent Part No. 338741
Spec: 120mm Total Length
Detail: nuts and washers not included - special washer is FF013027. 4 required per hardtop - 1 for each corner
FF Part No. FF012366
Equivalent Part No. AYR500110
Spec: Nuts and Washers Not Included - 67mm Total Length
Detail: 4 required per hardtop - 1 for each corner
FF Part No. FF012225
Equivalent Part No. AFC710010GALV
Spec: Galvanised
Detail: runs side to side of back body tub. mild steel

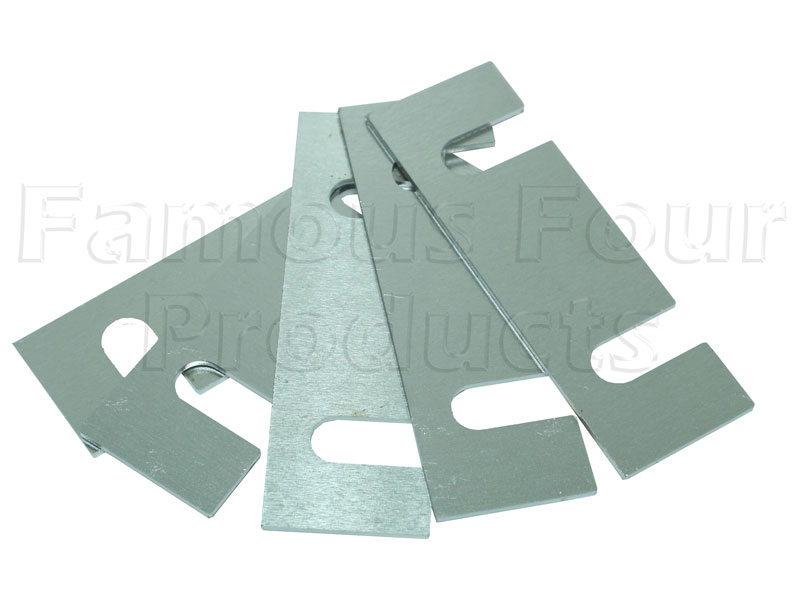

FF Part No. FF012187
Equivalent Part No. NRC7131
Spec: as required per vehicle - upto 2A626977 (approx 2002)
FF Part No. FF012184
Equivalent Part No. MUC9220
Spec: SWB 90 - 2 required per vehicle
FF Part No. FF012185
Equivalent Part No. MUC9220G
Spec: SWB 90 - 2 required per vehicle
FF Part No. FF012013
Equivalent Part No. NK106082
Spec: 7A000001 (approx 2007) onwards
Detail: for screws at the vertical sides of seatbox
FF Part No. FF012011
Equivalent Part No. AL614011
Spec: Front Floor Plates and Transmission Tunnel - 7A000001 (approx 2007) onwards
Detail: for screws at the rear of front floorpans
FF Part No. FF011604
Equivalent Part No. AFP710440
Spec: 2 required per vehicle
Detail: secures the seat belt bracket bolts to the chassis A-frame cross member
FF Part No. FF011401
Equivalent Part No. LR514BMO
Spec: 110/130 - Front of Back Body - 5 Door Station Wagon or Crew Cab Vehicles ONLY - 4 required per vehicle
Detail: bolts rear body tub to outrigger FF001156
FF Part No. FF011400
Equivalent Part No. LR514BMBP
Spec: 110/130 - Inner Front of Back Body - 2 Door Hardtop Vehicles ONLY - 2 required per vehicle
Detail: bolts rear body tub to outrigger FF001156
FF Part No. FF011399
Equivalent Part No. LR514BM
Spec: 110/130 - Inner Front of Back Body - Truck Cab Vehicles ONLY - 2 required per vehicle
Detail: bolts rear body tub to outrigger FF001156
FF Part No. FF011399
Equivalent Part No. LR514BM
Spec: 110/130 - Outer Front of Back Body - NOT Station Wagon - 2 required per vehicle
Detail: bolts rear body tub to outrigger FF001156
FF Part No. FF011223
Equivalent Part No. DA4795
Detail: similar to 2007 onwards style fittings, but suitable for all earlier models as well. consists of 4 x M8 A4-80 x 20mm hex head bolts 10 x M8 A4-70 x 30mm pan head bolts 4 x M8 A4 spring washers 14 x M8 A4 flat washers 1 x T40 bit
FF Part No. FF010925
Equivalent Part No. NRC5478
Spec: 110/130 - 2 required per vehicle
Detail: supports the rear body tub from the chassis A-frame cross member
FF Part No. FF010095
Equivalent Part No. 301328
Spec: For Canvas Hood - Rivets not included
Detail: will need to be drilled and riveted to the bodyside
FF Part No. FF009852
Equivalent Part No. 330578
Spec: Right Hand - Front of Back Body - drilling required
FF Part No. FF009851
Equivalent Part No. 330579
Spec: Left Hand - Front of Back Body - drilling required
FF Part No. FF004279
Equivalent Part No. 302532
Spec: For Floor Panel Fixings, Front Outer Wing and Various Other Parts
Detail: for floorpan fixing screws and various other applications
FF Part No. FF006373
Equivalent Part No. CZA4705L
Spec: Front Floor Plates and Transmission Tunnel
Detail: for screws at the front of front floorpans
FF Part No. FF009344
Equivalent Part No. AB614061L
Spec: Front Floor Plates and Transmission Tunnel
FF Part No. FF004280
Equivalent Part No. 320045
Spec: 110 CSW - Second Row Floor Plate
FF Part No. FF008384
Equivalent Part No. DA1179
Spec: Stainless Steel - Non Air Con models
FF Part No. FF007661
Equivalent Part No. MUC7505
Spec: 90 - to LA939891 (approx 1994)
FF Part No. FF007662
Equivalent Part No. MUC7506
Spec: to TA995737 (approx 1998)
FF Part No. FF007290
Equivalent Part No. 334121
Spec: Non Air Con Models - upto WA138479 (approx 1998)
FF Part No. FF007278
Equivalent Part No. AFC710010
Detail: runs side to side of back body tub. mild steel
FF Part No. FF007154
Equivalent Part No. 332582
Spec: upto 2A631634

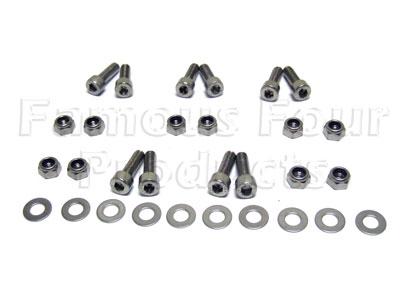

FF Part No. FF006126
Equivalent Part No. DA1136
Detail: 10 x M8 x 25mm socket cap bolts 10 x M8 nyloc nuts 10 x M8 flat washers
